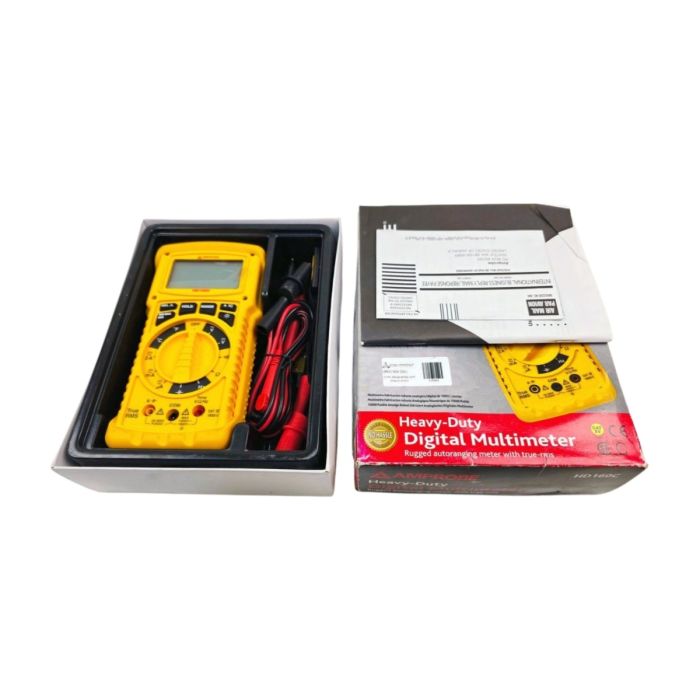

Amprobe HD160C True RMS Digital Multimeter Kit w/Accessories NEW
This is a NEW Amprobe HD160C True RMS Digital Multimeter Kit w/Accessories NEW that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview
Amprobe HD160C True RMS Digital Multimeter Kit w/Accessories NEW
This is a NEW Amprobe HD160C True RMS Digital Multimeter Kit w/Accessories NEW that was tested prior to being listed and is in working condition.
Includes:
- New Amprobe HD160C True RMS Digital Multimeter Kit w/Accessories KIT
The Amprobe HD160C True RMS Digital Multimeter is a heavy-duty electrical measurement instrument designed for professional use in harsh industrial environments. It features True RMS technology for accurate measurement of non-linear signals and supports a wide range of electrical parameters including voltage, current, resistance, capacitance, frequency, and temperature.
Built with rugged, sealed construction, the device is engineered to withstand moisture, dust, and mechanical impact, making it suitable for demanding field applications such as industrial maintenance, solar installations, and electrical troubleshooting. It provides high-voltage measurement capability and strong transient protection, ensuring safe and reliable operation in high-energy environments.
Key Features
● True RMS measurement for accurate readings on distorted signals
● High voltage capability up to 1500 V DC and 1000 V AC
● IP67 sealed design for water and dust resistance
● 10,000 count display with analog bar graph
● Measures voltage, current, resistance, capacitance, frequency, and temperature
● High transient protection up to 12 kV
● Autoranging with Min/Max, Hold, and Relative functions
● Designed for industrial, HVAC, and solar applications
| Specification | Value |
|---|---|
| Product Type | True RMS Digital Multimeter |
| Display Counts | 10,000 |
| DC Voltage Range | Up to 1500 V |
| AC Voltage Range | Up to 1000 V |
| DC Voltage Accuracy | ±0.1% + 2 counts |
| AC Voltage Accuracy | ±0.8% (45–500 Hz) |
| DC Current Range | 100 µA to 2 A |
| AC Current Range | 100 µA to 2 A |
| Current Accuracy | ±0.5% to ±1.0% |
| Resistance Range | Up to 40 MΩ |
| Capacitance Range | 40 nF to 400 µF |
| Frequency Range | Up to 10 MHz |
| Temperature Range | -20°C to 1300°C |
| Input Impedance | 10 MΩ |
| Transient Protection | Up to 12 kV |
| Safety Rating | CAT IV 1000 V |
| Protection Rating | IP67 |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5453 |
| Model | HD160c |
| Product Condition | New |
