Sign In for Member Pricing Olympus Panametrics 38DL Plus Ultrasonic Thickness Gage Gauge 38DL W Options
This is an excellent condition Olympus Panametrics 38DL Plus Ultrasonic Thickness Gage Gauge that was tested prior to being listed and is in working condition. NOTE: Battery is alkaline, not rechargeable.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview
Olympus Panametrics 38DL Plus Ultrasonic Thickness Gage Gauge
This is an excellent condition Fluke II900 Sonic Industrial Imager w/ 2 Batteries, charger and Case that was tested prior to being listed and is in working condition. NOTE: Battery is alkaline, not rechargeable.
Includes:
- Olympus 38DL Plus Ultrasonic Thickness Gage w/ Options:
- NOTE: Battery is alkaline, not rechargeable
- Measurements Modes:
- Thickness
- Velocimeter
- Time Of Flight
- Options
- Multi Measurement
- High Penetration
- Encoded BSCAN
- High Resolution
- Oxide Layer
- Olympus Thickness Gauge
- AA Battery Holder
- Olympus Couplant
- AC Adapter/Charger
- Power Cord
- USB PC Interface Cable
- Wrist Strap For Unit
- User Manual On CD-ROM
- Hard Carrying Case
The Olympus Panametrics 38DL Plus Ultrasonic Thickness Gauge is a high-performance handheld instrument designed for non-destructive thickness measurement of metals and other materials using ultrasonic wave technology. It operates by transmitting high-frequency sound waves into a material and calculating thickness based on the time-of-flight of reflected signals, enabling accurate measurement from a single accessible surface.
The device supports both dual-element and single-element transducers, making it suitable for corrosion inspection, precision thickness measurement, and multilayer material analysis. It incorporates advanced features such as THRU-COAT® technology for measuring through coatings and high dynamic gain for improved signal clarity in challenging materials. It is widely used in industries such as oil & gas, manufacturing, and structural inspection.
Key Features
● Ultrasonic measurement technology for non-destructive thickness testing
● Wide thickness range up to 635 mm depending on probe and material
● Dual and single element transducer compatibility
● THRU-COAT® and echo-to-echo measurement through coatings
● High resolution measurement down to 0.001 mm (optional mode)
● Multilayer measurement capability up to 4 layers
● Corrosion detection for pipes, tanks, and structural materials
● Time-based B-scan with up to 10,000 stored readings
● High dynamic gain with digital signal filtering
| Specification | Value |
|---|---|
| Product Type | Ultrasonic Thickness Gauge |
| Measurement Range | 0.08 mm to 635 mm |
| Resolution | 0.01 mm (standard), 0.001 mm (high resolution) |
| Velocity Range | 0.508 to 13.998 mm/µs |
| Transducer Frequency Range | 2.25 MHz to 30 MHz |
| Measurement Modes | Dual Element, Single Element |
| Coating Measurement | THRU-COAT®, Echo-to-Echo |
| Multilayer Capability | Up to 4 layers |
| Scan Mode | B-Scan (10,000 readings) |
| Display | Color VGA Transflective |
| Operating Temperature | -10°C to 50°C |
| Protection Rating | IP67 |
| Data Storage | Internal Data Logger |
| Measurement Types | Thickness, Velocity, Time-of-Flight |
Specifications
| Weight | 30 lbs |
|---|---|
| Brand | Olympus |
| MPN | EV5460 |
| Model | 38DL Plus |
| Product Condition | Used |

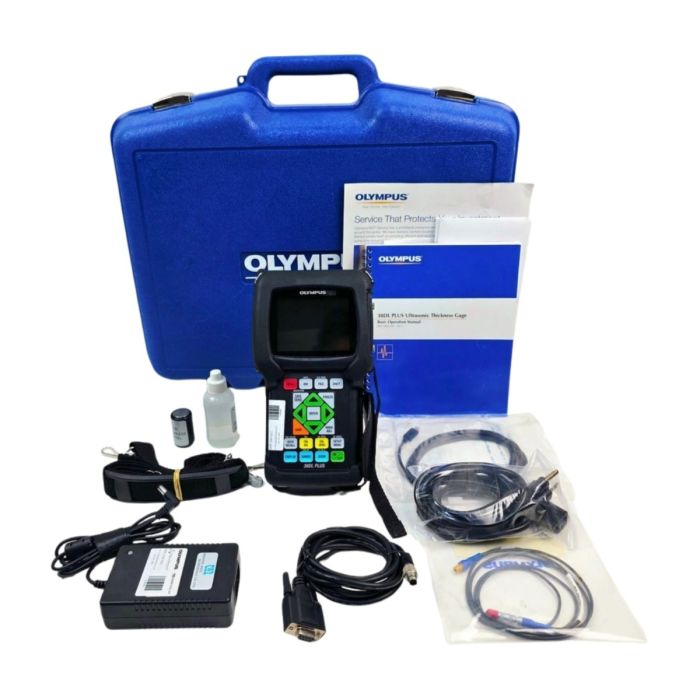

What's in the box?
- Olympus 38DL Plus Ultrasonic Thickness Gage w/ Options:
- NOTE: Battery is alkaline, not rechargeable
- Measurements Modes:
- Thickness
- Velocimeter
- Time Of Flight
- Options
- Multi Measurement
- High Penetration
- Encoded BSCAN
- High Resolution
- Oxide Layer
- Olympus Thickness Gauge
- AA Battery Holder
- Olympus Couplant
- AC Adapter/Charger
- Power Cord
- USB PC Interface Cable
- Wrist Strap For Unit
- User Manual On CD-ROM
- Hard Carrying Case
