Proto J6232 3200 ft-lbs Torque Multiplier 19-19/32" Long

Proto J6232 3200 ft-lbs Torque Multiplier Proto J6232 Torque Multiplier 19-19/32" Long

This is a used condition Proto J6232 3200 ft-lbs Torque Multiplier Proto J6232 Torque Multiplier 19-19/32" Long, shows normal signs of use, wear and tear that was tested prior to being listed and is in working condition.

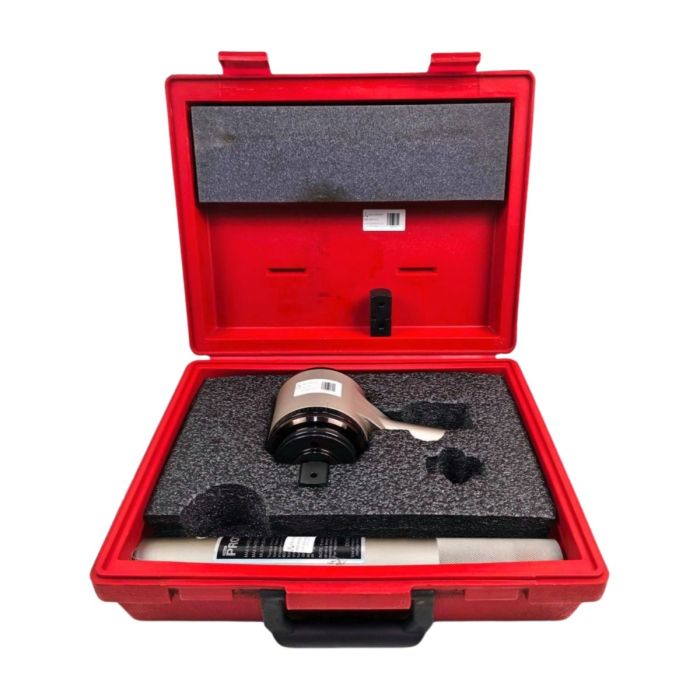

Includes:

• Proto J6232 Torque Multiplier 3200 ft-lbs, 19-19/32" Long
• Case

The Proto J6232 Torque Multiplier is a high-capacity mechanical torque amplification tool designed for heavy industrial fastening applications. It uses a planetary gear system to multiply input torque, allowing operators to achieve extremely high torque outputs using standard torque wrenches. This makes it ideal for maintenance, construction, and heavy equipment assembly where high torque is required but space and leverage are limited.

The unit incorporates a tubular reaction bar system to safely absorb reaction forces and features an internal anti-backlash mechanism to prevent sudden release of stored energy. It is engineered for controlled, accurate torque application in demanding environments such as oil & gas, power generation, and heavy machinery servicing.

Key Features

    ● High torque output up to 3200 ft-lbs for heavy-duty applications

    ● 1:18.5 torque multiplication ratio for efficient force amplification

    ● Two-stage planetary gear system for smooth and consistent operation

    ● Tubular reaction bar for controlled torque reaction handling

    ● Self-contained 3-position anti-backlash device for safety

    ● Controlled shear output drive for overload protection

    ● ±5% torque accuracy for reliable fastening

    ● Designed for use with torque wrenches and non-impact tools

• Proto J6232 Torque Multiplier 3200 ft-lbs, 19-19/32" Long
• Case
